ECO2JET: THE CO2 FREE INNOVATION. - Products
A REVOLUTION IN SMOKE EFFECTS.
It might sound unbelievable, but a single live show can require hundreds of heavy CO₂ gas cylinders. These take up valuable backstage space, complicate transport logistics, and add unnecessary costs and coordination for the event team, all for what is essentially a simple visual effect.
At MAGIC FX, we started asking the obvious question: Isn't there a better way? That question sparked the creation of the ECO2JET, a revolutionary new system that delivers the same powerful white smoke blast as a traditional CO2JET, but with zero gas bottles, less weight, and independent of humidity. Perfect for show professionals.
Pim, R&D Manager
WHAT’S BEEN UPDATED?
Every great product starts with a vision. We recognized the problems with CO₂ gas bottles and began developing a solution that would transform how special effects professionals incorporate CO₂ effects into their events.
From concept to creation: our R&D journey
Our journey to develop the ECO2JET took us through multiple innovation phases:
Initial concepts
The development of the ECO2JET, like many pioneering innovations, began with a rough sketch and a clear goal. The very first prototypes were far from sophisticated, a collection of 3D-printed parts, wooden frames and duct tape. The focus was not on aesthetics, but on replicating the iconic white smoke plume that CO2-jets are known for: powerful, direct and visually impressive.
Prototype development
We built and tested dozens of versions. Eventually, we found the right combination: a strong heating element, turbo fan, and custom nozzle. With our own water-based fluid, we achieved the same powerful effect, shooting smoke up to 12 meters, even in dry outdoor conditions.
Refinement & field testing

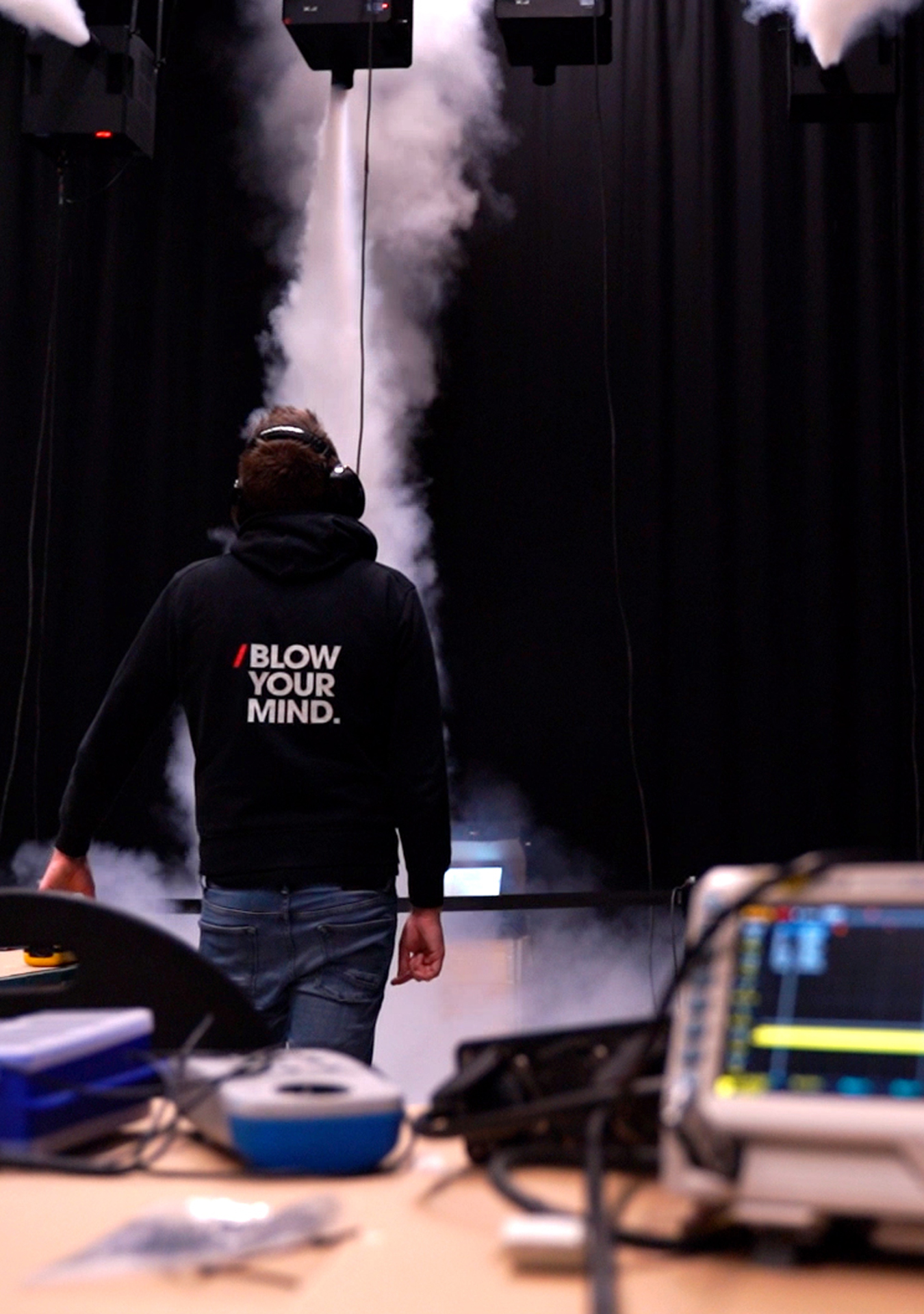

After internal testing (drop, rain, durability), it was time for field use. A small group of clients tested the ECO2JET at real events. Seeing the product live on stage before it was even launched was a proud moment. However, feedback showed it still wasn’t compact enough. That sent us back to the drawing board.
Final adjustments
By moving the fluid canister outside the machine and adding accessories like the 2L Attachable Fluid Can, we made the ECO2JET smaller and more flexible.
What began as a rough prototype in the lab is now a refined, high-performance machine, trusted on the biggest stages, built for the future of events.
“The moment we saw one small fluid can replace multiple gas bottles, that was a breakthrough.”
Niels, Lead Mechanical Engineer
Key improvements over traditional CO2JETS.
| Feature | Traditional CO2JETS | ECO2JET | Improvement |
| Effect type | Classic CO₂ smoke plume | Identical plume without CO₂ gas | Same visual effect, no gas needed |
| Output | ±8m (depending on humidity) | 12m | 4 meters more power and consistent |
| CO2 usage | Liquid CO2: up to 0,5 kg/s | None, uses water-based fluid | Eliminates need for gas bottles |
| Fluid consumption | N/A | 0,385L/min (5L in 13 minutes) | 5L replaces 13 CO₂ cylinders |
| Noise level | 115dB | 95dB | 4 x quieter |
| Weather sensitivity | Affected by humidity/temperature | Performs in all conditions | Reliable in any environment |
| Backstage storage | Requires large storage space for cylinders | Compact fluid canisters | Saves space backstage |
| Transport & logistics | Heavy and complex (due to gas cylinders) | Lightweight and easy to transport | Easier and cheaper to move |
| Safety | Works under high pressure and classified as dangerous good (CO₂) | No pressurized gas, not classified as dangerous good | No safety classification, lower risk and no transport restrictions |
PRO TIPS.

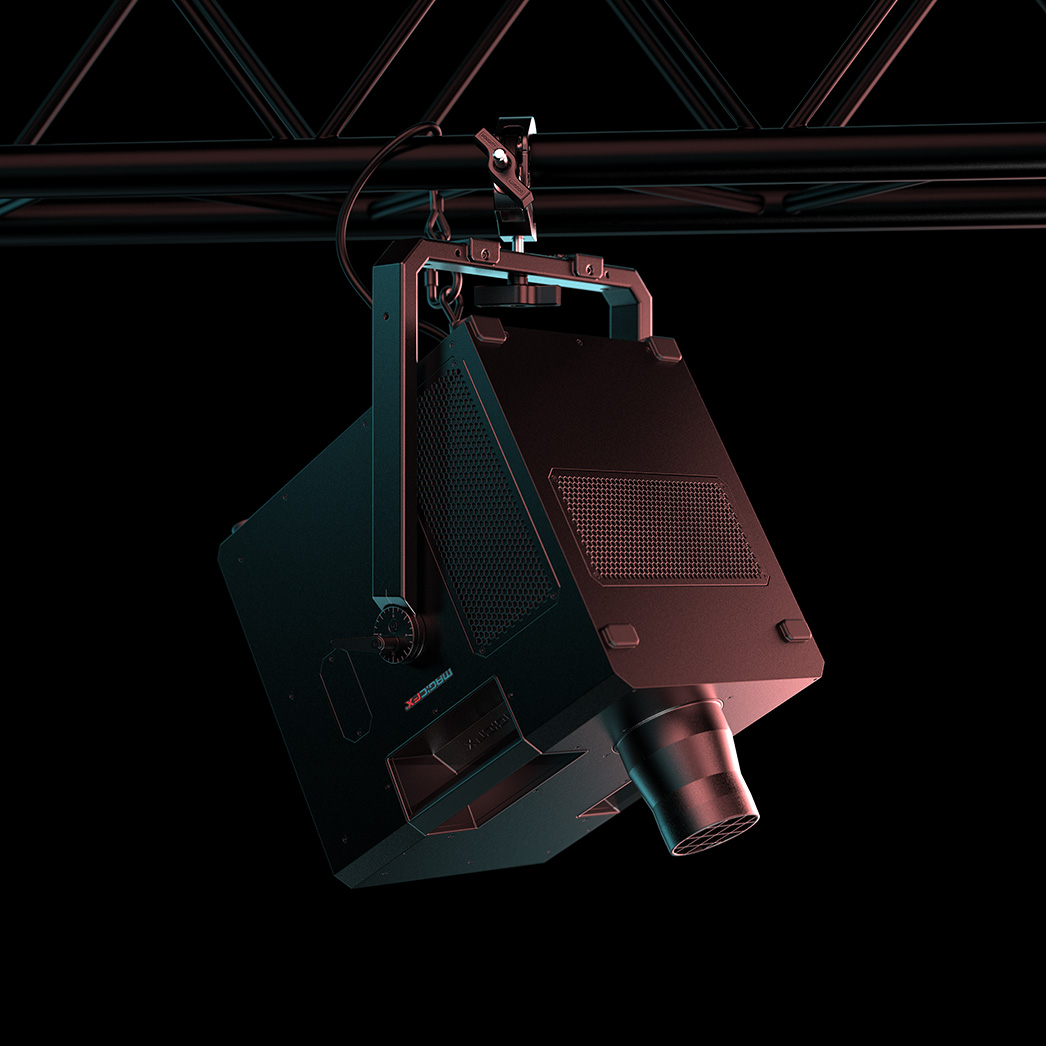

Use the fully rotated ECO2JET brachet to angle the unit, or to mount it in a truss under all angles.
Add an LED spotlight to light up the entire smoke cloud from bottom to top.

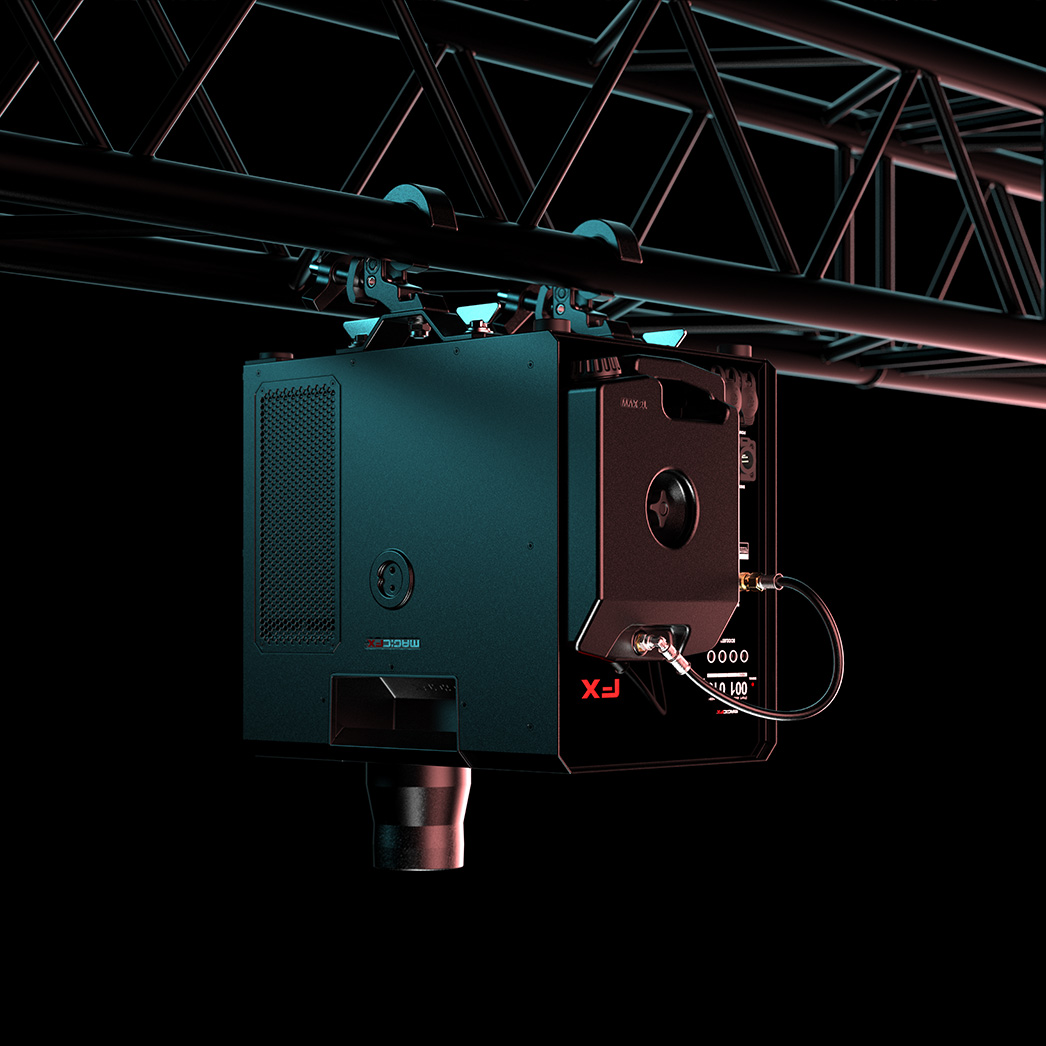

Add the 2L Attachable Fluid Can to your ECO2JET and you can shoot for 5 minutes of effect, even upside down!
Ready to Transform Your Events?
The ECO2JET reflects our commitment to innovation, sustainability, and quality in the world of special effects. This isn’t just equipment, it’s a tool for creating unforgettable moments with less environmental impact.
