FLAMEBLAZER STANDALONE

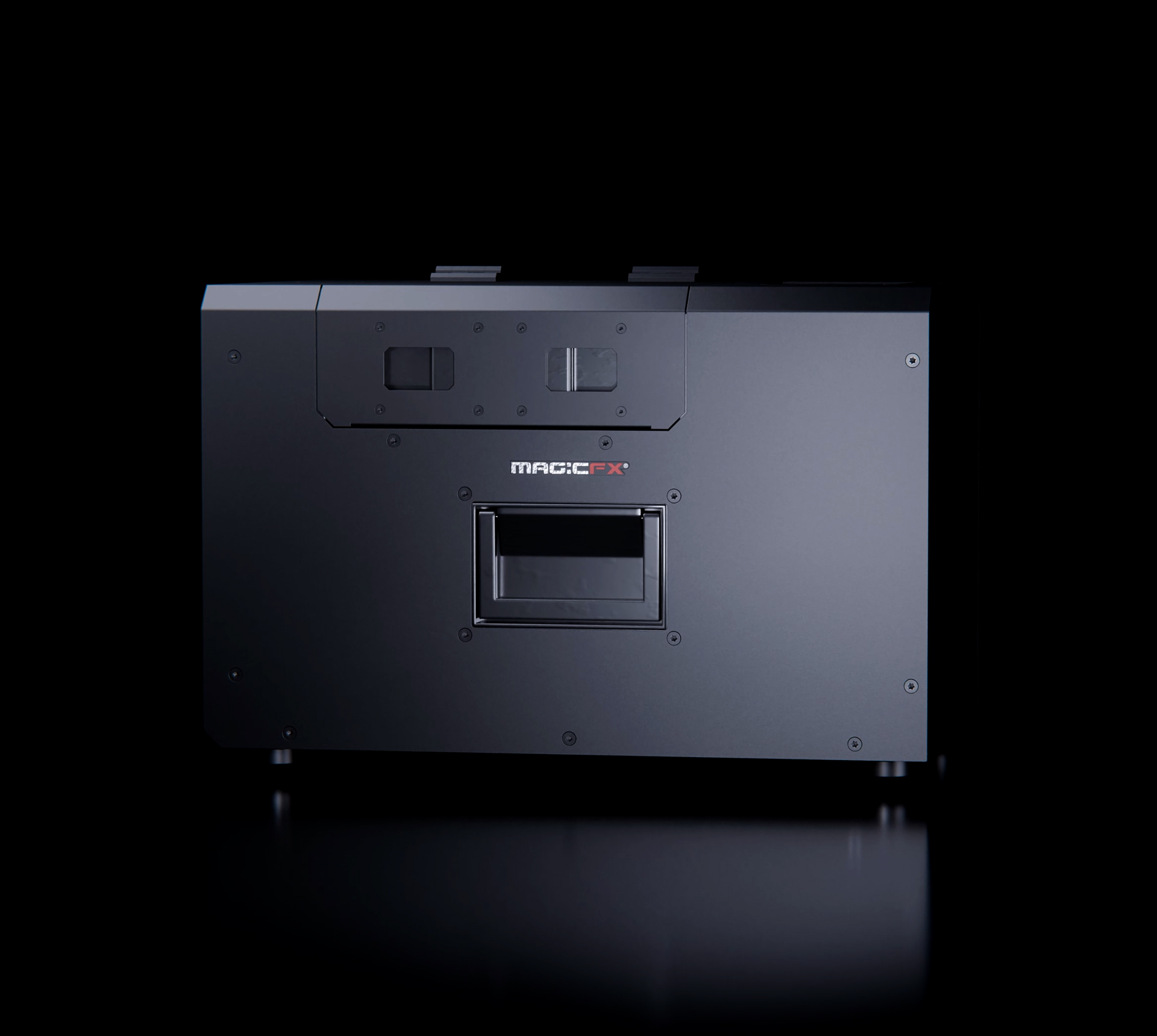

Meet the FLAMEBLAZER STANDALONE, a state-of-the-art liquid flamethrower. Extremely fast and reliable because of its high-quality internal pump, dual ignition and premium electronics. The robust grips and waterproof housing are finishing touches to the compact design. Fire 10 (L nozzle), 8 (M nozzle), or 6 (S nozzle) meter flames. A 5 liter fluid can fits in the internal compartment, which is secured by a locking lid.

The FLAMEBLAZER STANDALONE is secured with the SFX SAFETY ARM SYSTEM to ensure maximum safety. Override it with other safety systems with the Arm Override Switch. Place the FLAMEBLAZER STANDALONE on a stage or truss, activate the safety system, heat it up and fire away!

SKU:
MFX1403

New batch expected from half June 2025. Request a backorder via the MAGIC FX webshop.
Mail to info@magicfx.eu for the last stock of the original FLAMEBLAZER STANDALONE.

Want to backorder?

Please login to place a backorder request

LOGIN

Request backorder

Fill out the form so we can process your backorder request.

COMPACT, STANDALONE
PLUG AND PLAY FLAME HEAD.

Built-in pump and designed with high-quality parts, firm grips and a locking lid.

DUAL
IGNITION.

Fast, responsive and reliable firing.

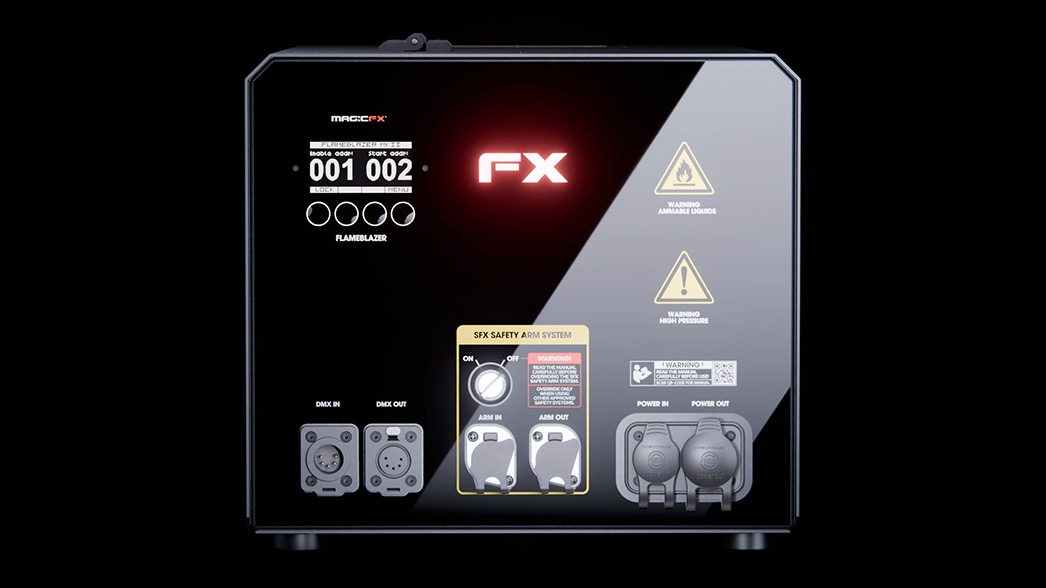

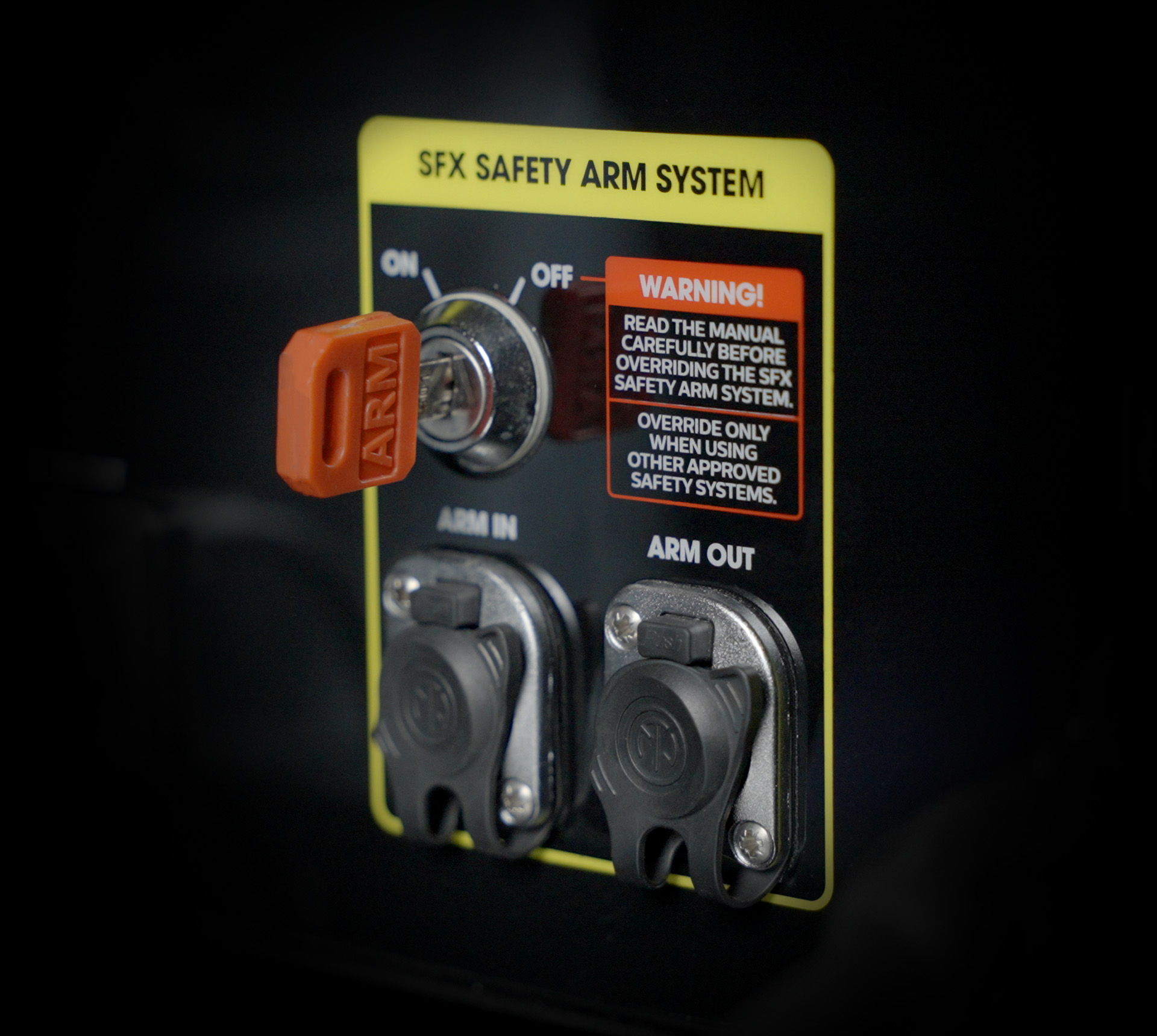

NEXT LEVEL SAFETY WITH
THE SFX SAFETY ARM SYSTEM.

Or optionally use other safety systems with the Arm Override Switch.

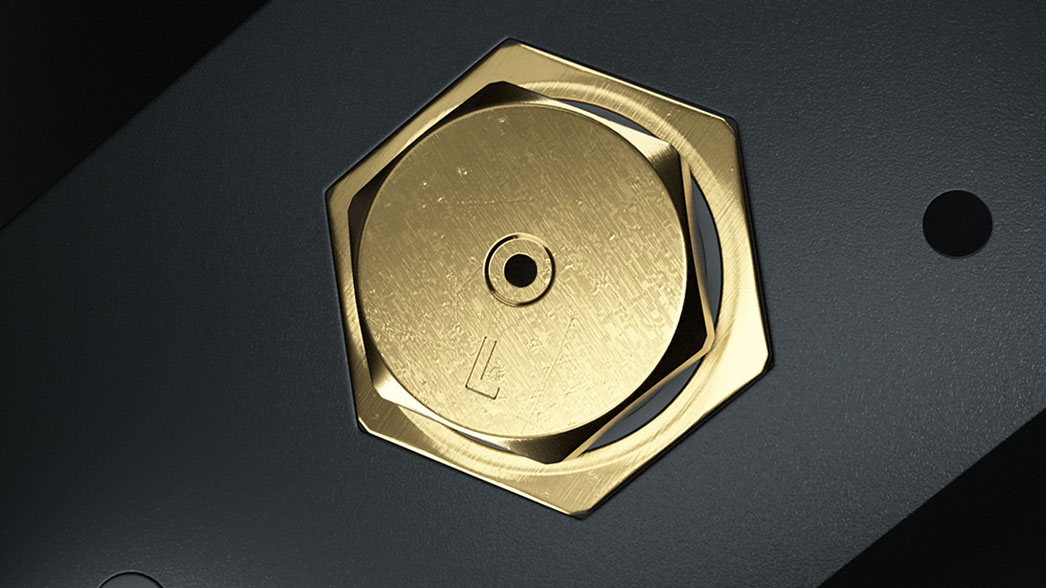

INTERCHANGEABLE
S, M AND L NOZZLES.

For 6, 8 or 10 meter flames.

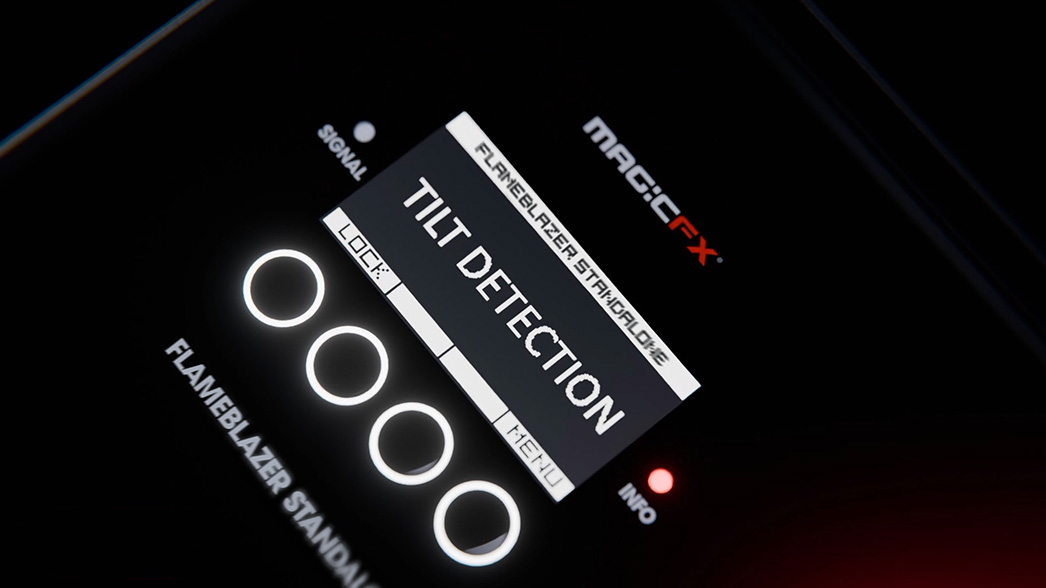

TILT
DETECTION.

Tiltable angle up to 45 degrees.

WATERPROOF HOUSING
FOR ELECTRONICS.



Specifications.

Length 41 cm
Width 30 cm
Height 28,1 cm
Weight 22 kg
Voltage 220 – 250 Vac 50/60 Hz
Power 395 W
Control DMX
Consumables Isopar / Isopropanol (IPA)
Consumption S nozzle: 12 ml/s, M nozzle: 30 ml/s, L nozzle: 50 ml/s
Capacity 5L fluid can compartment
Output S nozzle up to 6 m / M nozzle up to 8 m / L nozzle up to 10 m
Not included Power cable and SFX SAFETY ARM SYSTEM not included. 1x L-nozzle is standard included.
Warranty 3 years

DOWNLOADS.

Download the user manual for installation and safety instructions. Or download the product sheet for information about the materials of the product.
FLAMEBLAZER STANDALONE MANUAL

Related

Hardware.

SFX SAFETY ARM CONTROLLER
combiner rack.jpg
SFX SAFETY COMBINER 19" RACK
combiner box.jpg
SFX SAFETY COMBINER BOX
SFX SAFETY BEACON
SFX SAFETY E-STOP COVER
SFX SAFETY E-STOP

Consumables.

MFX3086 FLAME FLUID ISOPAR L 5L 1682x1682px.jpg
Flame Fluid Isopar L 5 L
MFX3080 FLAME FLUID IPA 5L 1682x1682px.jpg
Flame Fluid IPA 5 L

Accessories.

MFX0313_Schuko to Neutrik powerCON TRUE1 cable_1,5 m2.jpg
Schuko to Neutrik® powerCON TRUE1 cable
SFX1401_MAGICFX_FLAMEBLAZER Nozzle S.jpg
FLAMEBLAZER Nozzle S
SFX1402_MAGICFX_FLAMEBLAZER Nozzle M.jpg
FLAMEBLAZER Nozzle M
SFX1403_MAGICFX_FLAMEBLAZER Nozzle L.jpg
FLAMEBLAZER Nozzle L
SFX1404_FLAMEBLAZER Nozzle Exchange Tool.jpg
FLAMEBLAZER Nozzle exchange tool
FLAMEBLAZER STANDALONE Flightcase (for 2 pcs)
MFX3106_Doughty Half Coupler (100 kg) M10.jpg
Doughty Half Coupler (100 kg) M10
MFX0316_MFX0317_MFX0318_MFX0319_MFX0320_MFX0321_Flexible DMX Cable 5 pole XLR.jpg
Flexible DMX Cable 5 pole XLR
MFX0340_MFX0341_MFX0342_MFX0343_MFX0344_MFX0345_SFX SAFETY ARM Data cable (etherCON).jpg
SFX SAFETY ARM Data cable (etherCON)
MFX3223_SFX SAFETY TERMINATOR.jpg
SFX SAFETY TERMINATOR
MFX3226_SFX SAFETY DMX INJECTOR.jpg
SFX SAFETY DMX INJECTOR
STANDALONE LIQUID FLAME.

The FLAMEBLAZER STANDALONE uses Isopar or Isopropanol (IPA) as fuel to create the flame effect. The fluid is projected from a single outlet across ignition pins to produce the flame jet. The integrated electric pump draws the fuel from the 5 L can and generates the firing pressure.

Different interchangeable nozzles (S, M and L) can create different flame heights for the FLAMEBLAZER STANDALONE. With the exchange tool, you can easily switch between 6, 8, and 10 meters. It’s equipped with dual ignition and is capable of extremely fast and responsive firing.

The compact design features robust grips and a waterproof housing for electronics. In addition to the internal pump, a 5L flame fluid canister is stored in the fluid compartment of the flamethrower. The locking lid ensures the fluid canister is securely held in place, especially when the unit is rigged on a truss.

THE FUTURE OF FLAMES.

Designed for absolute safety, this FLAMEBLAZER STANDALONE is compatible with the SFX SAFETY ARM SYSTEM to arm or disarm the flame system. With the Arm Override Switch, other safety systems can be used to guarantee safety. This way, every FX operator will be able to safely fire the flamethrower.

Safely place the FLAMEBLAZER STANDALONE on a solid and even surface or mount it on a truss. The safety eye is placed on the bottom of the machine, to safely secure the flame projector.

Transport is made easy using our specially designed flightcase. Always operate the MAGIC FX FLAMEBLAZER STANDALONE safely! Do not use if there are people, animals or objects within the safety zone. Read the manual for safety zones and instructions.
