FLAMEBLAZER 5-WAY

Shoot extremely fast flames in five different directions separately with the FLAMEBLAZER 5-WAY. The high-quality standalone flame unit features a built-in pump and dual ignition pins for maximum reliability. The fluid compartment stores a canister of 10L Flame Fluid. Robust grips and a waterproof housing for the electronics complete its compact, durable design.

Fire flames up to 6, 8, or 10 meters with the interchangeable S, M and L nozzles. The FLAMEBLAZER 5-WAY is secured with the SFX SAFETY ARM SYSTEM, ensuring maximum safety during operation. For added flexibility, the Arm Override Switch allows integration with external safety systems, enabling safe and responsible firing at all times. Activate the machine, and fire away in five ways!

SKU:
MFX1402
Article GTIN:
8719323579552

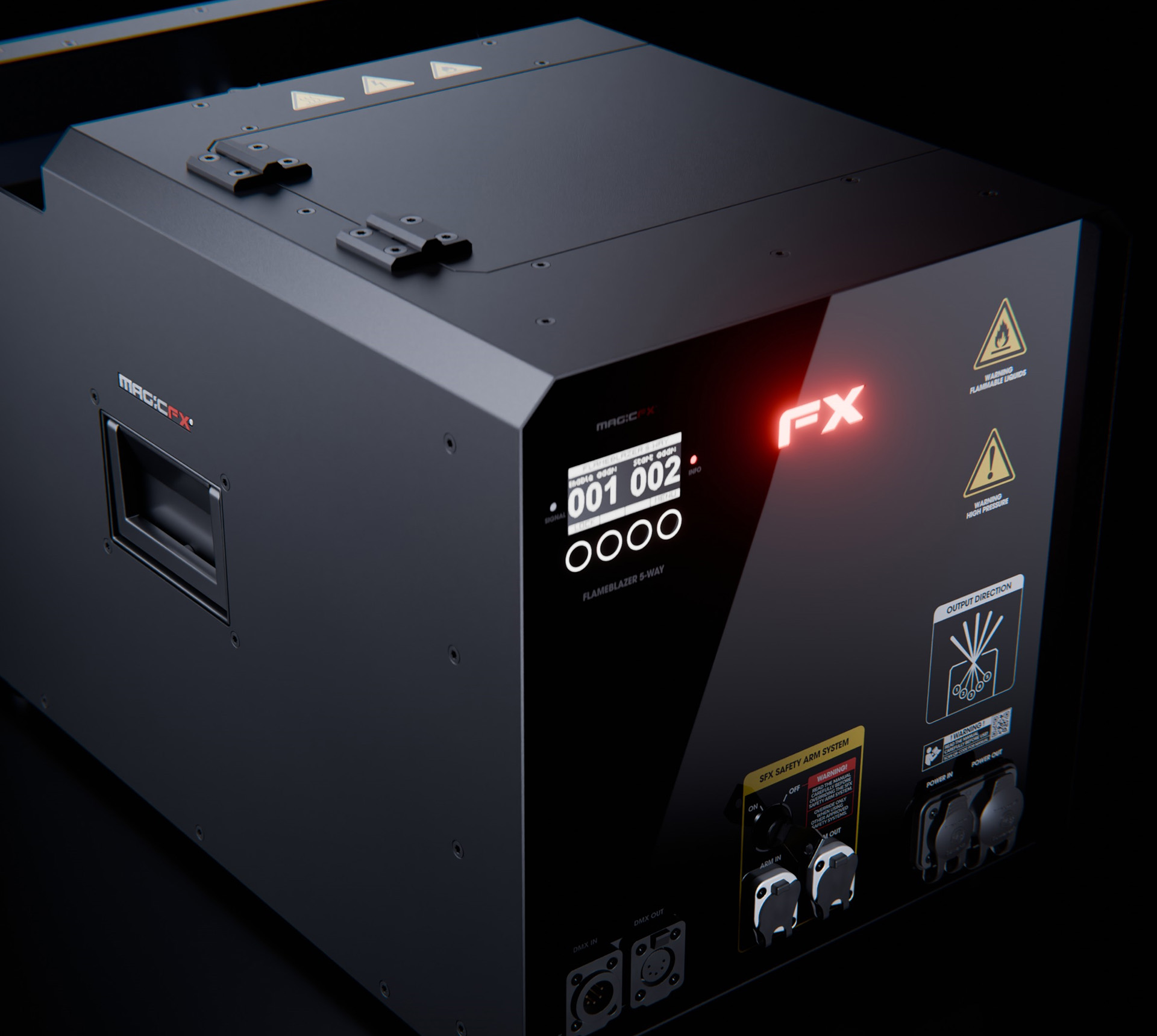

STANDALONE 5-WAY FLAME
WITH INTERNAL PUMP.

Designed to the highest quality standards, with premium parts and firm grips.

DUAL
IGNITION.

Fast, responsive and reliable firing.

INTERCHANGEABLE
S, M AND L NOZZLES.

For 6, 8 or 10 meter flames.

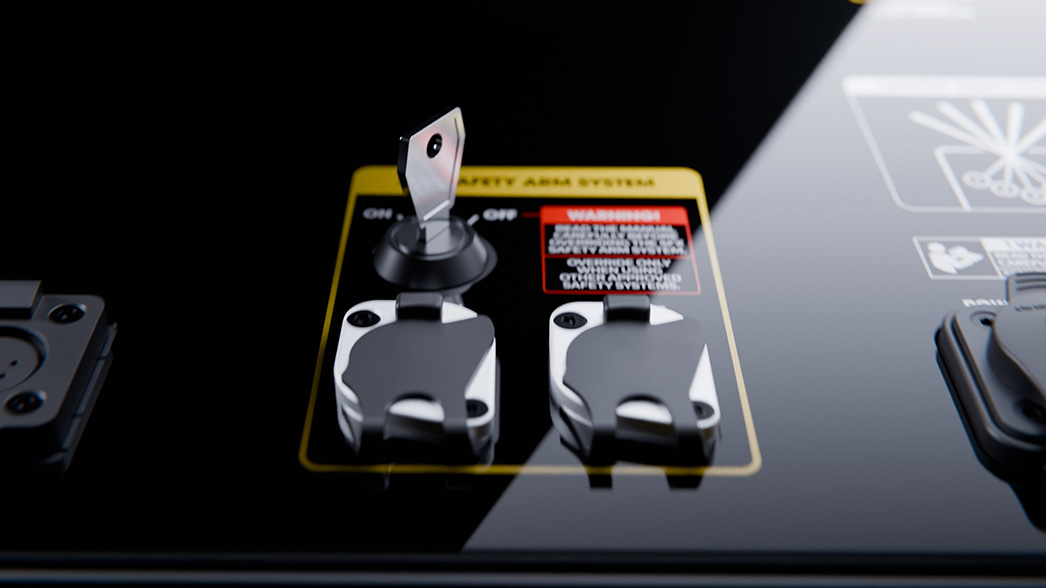

NEXT LEVEL SAFETY
SAFETY.

With the SFX SAFETY ARM SYSTEM. Or override with other safety systems with the Arm Override Switch.

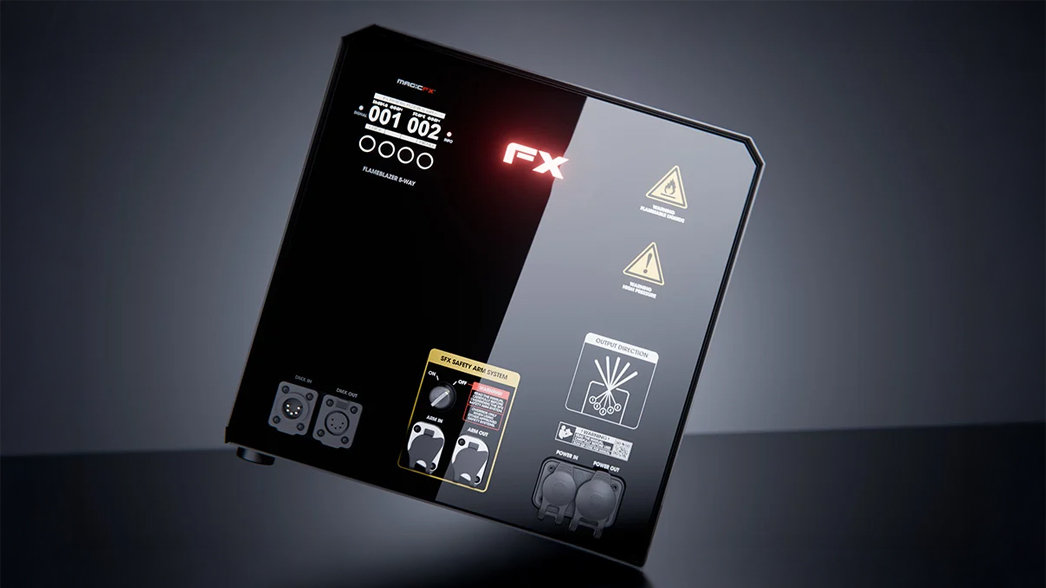

TILT
DETECTION.

For optimal safety. When mounted, the FLAMEBLAZER 5-WAY is tiltable in an angle up to 45 degrees.

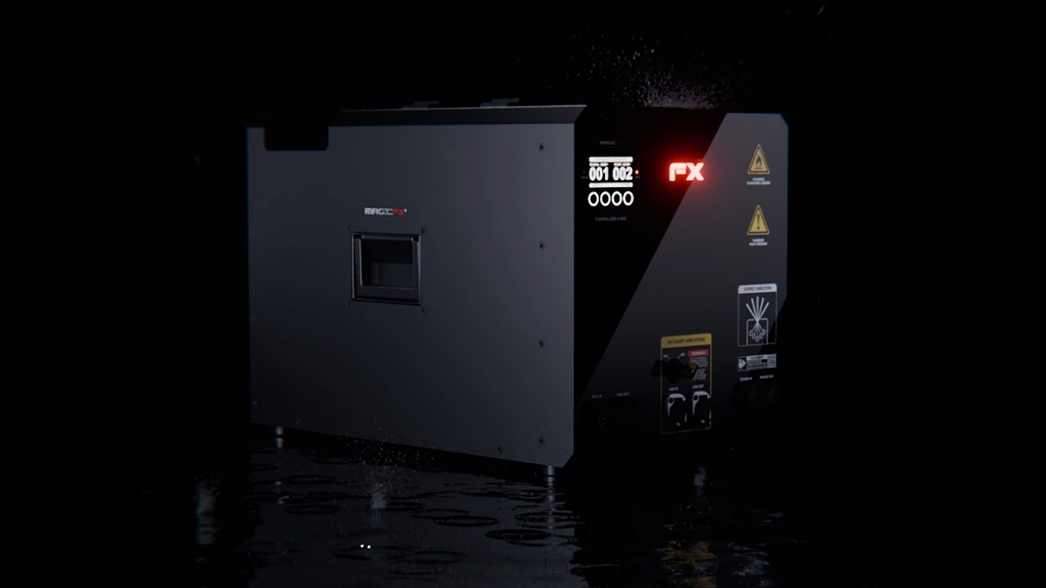

WATERPROOF
HOUSING.

Even in rainy circumstances, the standalone flame machine can be operated.

Specifications.

Length 51.1 cm
Width 33 cm
Height 34.8 cm
Weight 31 kg
Voltage 220 – 250 Vac 50/60 Hz
Power 395 W
Control DMX
Consumables Isopar L / Isopropanol (IPA)
Consumption S nozzle: 23 ml/s, M nozzle: 27 ml/s, L nozzle: 58 ml/s
Capacity 10 L fluid can
Output S nozzle up to 6 m / M nozzle up to 8 m / L nozzle up to 10 m
Included 5x L-nozzle and 4x blanking nozzles (to block the output) are standard included.
Not included Power cable and SFX SAFETY ARM SYSTEM not included.
Warranty 3 years

DOWNLOADS.

Download the user manual for installation and safety instructions. Or download the product sheet for information about the materials of the product.
FLAMEBLAZER 5-WAY MANUAL

Related

Hardware.

SFX SAFETY ARM CONTROLLER
SFX SAFETY BEACON
SFX SAFETY E-STOP COVER
SFX SAFETY E-STOP
combiner rack.jpg
SFX SAFETY COMBINER 19" RACK
combiner box.jpg
SFX SAFETY COMBINER BOX

Consumables.

MFX3086 FLAME FLUID ISOPAR L 5L 1682x1682px.jpg
Flame Fluid Isopar L
MFX3080 FLAME FLUID IPA 5L 1682x1682px.jpg
Flame Fluid IPA

Accessories.

FLAMEBLAZER 5-WAY Flightcase
SFX1401_MAGICFX_FLAMEBLAZER Nozzle S.jpg
FLAMEBLAZER Nozzle S
SFX1402_MAGICFX_FLAMEBLAZER Nozzle M.jpg
FLAMEBLAZER Nozzle M
SFX1403_MAGICFX_FLAMEBLAZER Nozzle L.jpg
FLAMEBLAZER Nozzle L
SFX1404_FLAMEBLAZER Nozzle Exchange Tool.jpg
FLAMEBLAZER Nozzle exchange tool
MFX0313_Schuko to Neutrik powerCON TRUE1 cable_1,5 m2.jpg
Schuko to Neutrik® powerCON TRUE1 cable
MFX0316_MFX0317_MFX0318_MFX0319_MFX0320_MFX0321_Flexible DMX Cable 5 pole XLR.jpg
Flexible DMX Cable 5 pole XLR
MFX3106_Doughty Half Coupler (100 kg) M10.jpg
Doughty Half Coupler (100 kg) M10
MFX0340_MFX0341_MFX0342_MFX0343_MFX0344_MFX0345_SFX SAFETY ARM Data cable (etherCON).jpg
SFX SAFETY ARM Data cable (etherCON)
MFX3223_SFX SAFETY TERMINATOR.jpg
SFX SAFETY TERMINATOR
5-WAY STANDALONE LIQUID FLAME UNIT.

The FLAMEBLAZER 5-WAY can shoot flames separately from five different outputs in different directions. Each outlet is operated individually, meaning they cannot fire all simultaneously. The interchangeable S, M and L nozzles produce flame heights of 6, 8 or 10 meters. Switch the nozzles easily with the nozzle exchange tool. In addition to varying flame heights, the flamethrower can be tilted at an angle of up to 45 degrees, creating a stunning effect.

The compact design of the standalone flamethrower is equipped with robust grips and a waterproof electronics housing. The fluid can compartment fits a 10 L flame fluid canister in the FLAMEBLAZER 5-WAY.

Isopar or Isopropanol (IPA) are flame fluids that can be used as fuel for the FLAMEBLAZER 5-WAY. The fluid is projected from the different outlets to create the flame effect. The high-quality, integrated electric pump draws the fluid from the 10 L fluid canister and generates the pressure for projection. Also, the dual ignition pins make sure the flame unit is capable of extremely fast and responsive firing.

ENSURING MAXIMUM SAFETY.

The FLAMEBLAZER 5-WAY is compatible with the SFX SAFETY ARM SYSTEM, ensuring maximum safety on and around the stage. With this system, you can arm or disarm the flames to prevent dangerous situations. The Arm Override Switch allows you to override the SFX SAFETY ARM SYSTEM with other safety systems, making sure that safety is always guaranteed.

Using the SFX SAFETY ARM SYSTEM, allows every FX operator to safely fire flames. Providing safety and reliability for artists, crew, and crowd.

Other safety features of the FLAMEBLAZER 5-WAY are a tilt detection sensor, dual ignition pins and a safety eye. To transport the 5-pin flame projector safe and easy, there’s a specially designed flight case available.
